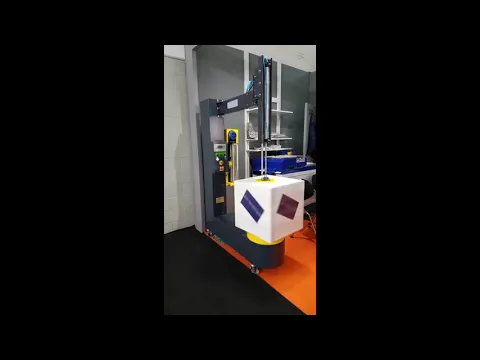

Stretch film wrapping machines LM 3000 AW

Automatic wrapping machine open turntable:

  • Open rotating table for loading with transpallet at 90°, 180°, 270°
  • Rotating table : mm 1500
  • Maximum load of table : 1000 kg
  • Control digital electrical panel
  • Soft starting and indexed stop of the turntable
  • Digital and separate rpm upper and lower adjustment
  • Wrapping cycles upwards/downwards
  • Pallet height sensing photocell
  • Manual and automatic system
  • Table rotation speed adjustment 0/10 rpm
  • Adjustable speed of the reel film dispenser
  • Maximum pallet dimensions : 1000 x 1200 x 2300H
  • Maximum reel dimensions : 300 mm diamenter, 500 mm height
  • Film thickness from 12 to 35 micron (other thicknesses to be tested)
  • Dispenser friction roller for adjustment film tension double section
  • Power supply 220 V single-phase installed power 1 Kw
  • Power supply system 220 V single thermal magnetic circuit breaker 0,6 amp for industrial use required
  • Lateral film reel to wrapping the lower part of the pallet
  • Weight wrapping machine : 600 kg
  • Colors : ral blue 5013, grey 9006
  • Dimensions of  wrapping machine : 2900 x 1660 x 2800H ( model 180° )
  • Packaging dimensions : 1750 x 3000 x 800H ( model 180° )
  • Wrapping cycle with stop to insert cup
  • Resert start/stop , ON/OFF
