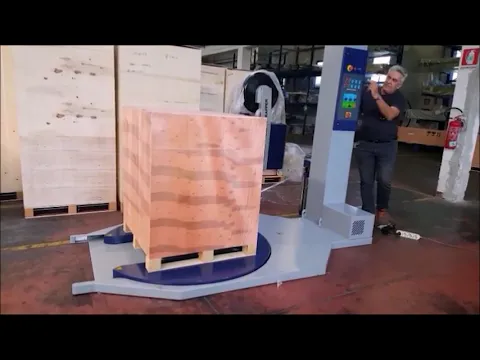

Special strech film wrapping machines LM 1500B

Rotating arm wrapping machines:

  • Soft starting/stopping
  • Indexed stopping arm
  • Control and management by PLC
  • Pallet height sensing photocell
  • Different preset wrapping systems
  • Motorized pre-stretch film fixed 250% adjustable from control panel
  • Security system at the base of the arm
  • Strech film h 500 outside diameter 280 mm
  • Power supply : single phase AC220V 50/60 Hz 1.25 Kw
  • Air pressure : 0.4 – 0.6 MPa
  • Drotating diameter 2000 mm minimum pack dimensions 600 x 600 mm
  • Speed table : 0-15 rpm (adjustable)
  • Pallet high : minimum 600 mm , maximum 2400 mm
  • Max load weight : unlimited
  • Weight machine : 1200 kg
  • Colors : ral blue 5013, grey 9006
  • Machine dimensions: 4000 x 2000 x 3650 H
  • Standard PLC : LG. optional SIEMENS
  • Inverter Schneider
