Automatic inverter with spindle for rolls (600 kg)

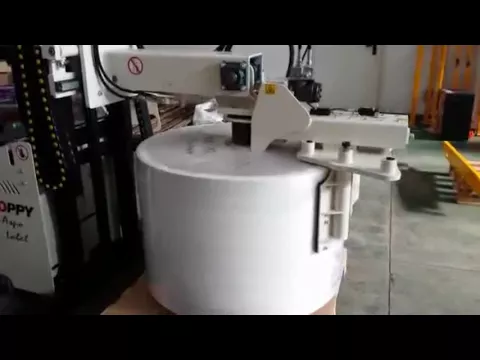

The paper roll (600 kg) is handled using the spindle which enters inside the roll’s the carboard core.

This roll turner with spindle can handle the rolls only if they are in vertical position, needing precision to introduce the shaft into the cardboard core of the roll.

The inverter can rotate the paper rolls up to 90°. The safety is guaranteed by the spindle design, this one being able to enlarge its diameter from 68 to 82 mm.

Technical specifications

Roll capacity600 kg
Roll fastening systemshaft
Shaft extension interval68 - 82 mm
Roll maximum diameter1200 mm
Rotation90°
Maximum height to which the roller rises1600 mm (2500 mm optional)
Inverter dimensions (WxHxD)1515 x 1740 x 1250 mm
Distance between feet1250 mm
Tractionelectrical
Charger24 V - 110 Ah
Request a quote
  • Documentation

    Datasheet-Automatic-inverter-with-spindle-for-rolls-600-kg.pdf

    Descarcă
